23.8’’ Touch PC All In One

We supply 23.8’’ touch PC all in one, which is our newest PC, touch PC with 10 point capacitive touch screen, ultrathin and aluminium alloy ladder bracket, more stable and convenient to use. Standard VESA wall mount design, satisfy in various applications use, will bring your suitable experience. We devoted ourselves to all in one PC for many years, especially in touch PC all in one. Most our products are covering Asia, North America, and Europe markets. We insist in providing high quality products and would like to services customers all over the world. We expect to be one of your honesty partner in China.

Send Inquiry

Product Description

23.8’’ Touch PC All In One

1. Product Introduction of 23.8’’ Touch PC All In One

This 23.8’’ touch PC all in one, which is our newest PC, touch PC with 10 point capacitive touch screen, ultrathin and aluminium alloy ladder bracket, more stable and convenient to use. Standard VESA wall mount design, satisfy in various applications use, will bring your suitable experience. We devoted ourselves to all in one PC for many years, especially in touch PC all in one. Most our products are covering Asia, North America, and Europe markets. We insist in providing high quality products and would like to services customers all over the world. We expect to be one of your honesty partner in China.

2. Brief features of 23.8’’ Touch PC All In One

1. Intel® Celeron®/Pentium®/Skylake/Kabylake/Geminilake/Coffeelake CPU

2. FHD tempered glass display screen

3. Original aluminium alloy ladder socket design

4. Display size 23.8’’

5. Build-in camera

6. 10 pointed capacitive touch (optional)

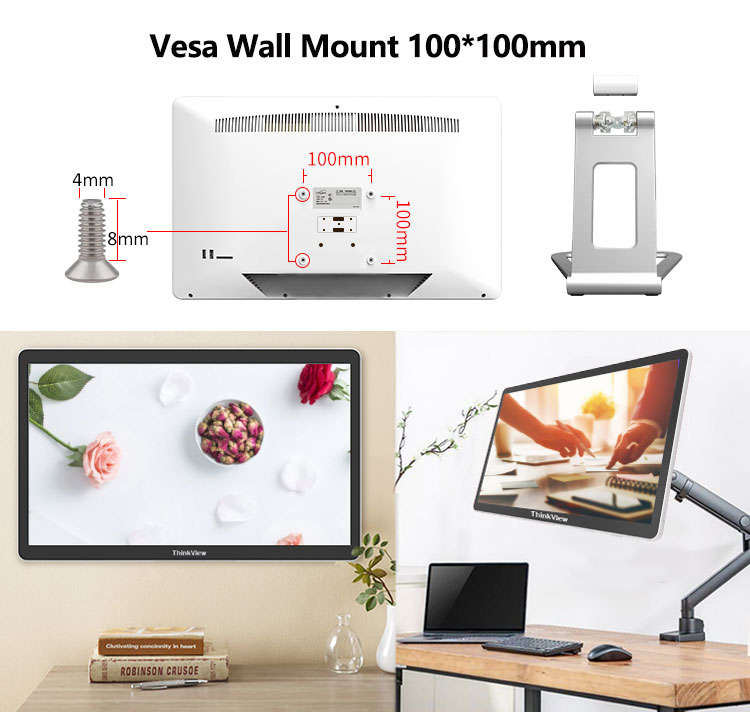

7. VESA wall mount 100*100mm

3. Product Specification/Parameter of 23.8’’ Touch PC All In One

Model	P300X
Display Size	23.8’’ display screen
Case	ABS Plastic case
Color	White/Black
Display Ratio	16:9
Resolution	Full HD 1920*1080P
Network	Realtek (10/100/1000 Mbps)
WIFI	802.11 a/b/g/n /AC WIFI+BT
Built-in Camera	0.3M/2.0M pixel
Stereo Speakers	3W + 3W
Power Supply	Power Adaptor 36W/48W/60W/90W/120W
GPU	Integrated Intel® HD Graphics
Motherboard	17*17cm Thin Mini ITX (support J3160/J1900/Apollo link/ Gemini Lake/H81/B85/H110/H310C/B360/H410/......)
I/O ports	USB2.02/USB3.02/RJ451/Mic1/HDMI1/Earphone1/VGA*1 (depend on the motherboard)
Side I/O ports	USB2.0*2 (default)
CPU	Intel® Atom™/Celeron®/Pentium®/Core™/Skylake/Kabylake/Coffeelake i3 i5 i7 (optional)
Ram	DDR3/DDR4 SO-DIMM 2GB-16GB (optional)
Storage	2.5'' 500GB-1TB HDD / 16GB-256GB SSD (optional)
Touch	10 point CapacitiveTouch (optional)
VESA WALL MOUNT	100*100mm
Mouse&Keyboard	Wired/Wireless keyboard﹠mouse (optional)
Win 7/WIN8/WIN10/Linux	Compatible
Tilt Angle	－5°- 50°
Net weight	5.2kg
Gross weight	6.5kg
Storage temperature	-10℃- 60℃

4.Product Feature And Application of 23.8’’ Touch PC All In One

This touch PC all in one, touch PC 2022, Product Features:

1. Integrated structure design of Intel® Core I7 standard

2. ultrathin and aluminium alloy ladder bracke

3. Single rotating shaft aluminum alloy support

4. 10 point capacitive touch screen

5. standard VESA wall mount 100*100mm

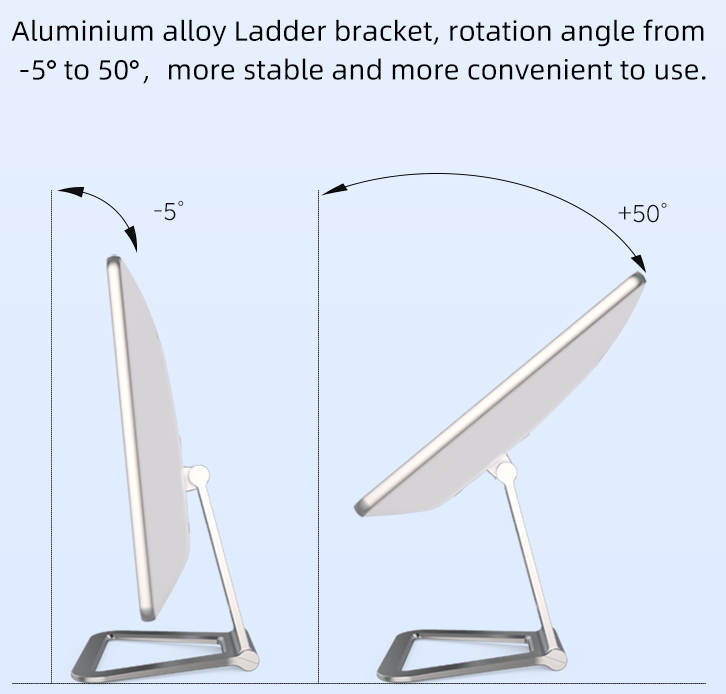

6. Rotation angel from -5° to 50° , comfortable use

This newest PC, touch screen PC, touch screen all in one computer,23.8’’ PC, Product applicable for:

Business, smart office, smart education, smart factory, smart medical, smart monitoring system, smart auction system, customized industries, etc.

5. Product Qualification of 23.8’’ Touch PC All In One

This touch PC all in one, touch PC 2022, newest PC, touch screen PC, touch screen all in one computer,23.8’’ PC, 23.8’’ touch screen all in one PC,wall mount all in one PC qualify to CE, FCC and ROHS , certified to ensure qualification for most markets all around the world.

6.Deliver,Shipping And Serving of 23.8’’ Touch PC All In One

QTY. (pcs)	Sample	20-50pcs	50-200	200-500	500-1K	Above 1K
Delivery (day)	7days	10-12days	12-15days	15-20days	20-30days	30-35days

	20ft		20ft		20ft
	with pallet	w/o pallet	with pallet	w/o pallet	with pallet	w/o pallet
Loading Qty.

7. FAQ

No power	Check that the power adaptor and power cord are connected well.
No power	Insure the power button works normally.
No display	Check the All one pc is not under “sleep” or “standby” mode.
No Network	Check the network cable is connected successfully if you use wired network.
No Network	Check the the wifi function is opened if you use wireless network.
