23.8'' Windows All in one PC

We supply 23.8'' Windows All in one PC, which is one of our hot promotion products. Intel standard all in one computer, special all in one frame design, ordinary aluminium alloy ladder socket, adopts newest Window 11 operation system. More table and more fast response. Most our products are covering Asia, North America, and Europe markets. We insist in providing high quality products and good services to all our customers. We expect to be one of your long term partner in China.

Send Inquiry

Product Description

23.8'' Windows All in one PC

1. Product Introduction of 23.8'' Windows All in one PC

This 23.8'' Windows All in one PC, which is one of our hot promotion products. Intel standard all in one computer, special all in one frame design, ordinary aluminium alloy ladder socket, adopts newest Window 11 operation system. More table and more fast response. Most our products are covering Asia, North America, and Europe markets. We insist in providing high quality products and good services to all our customers. We expect to be one of your long term partner in China.

2. Product Specification/Parameter of 23.8'' Windows All in one PC

Model	P300X
Display Size	23.8’’ display screen
Case	ABS Plastic case
Color	White/Black
Display Ratio	16:9
Resolution	Full HD 1920*1080P
Network	Realtek (10/100/1000 Mbps)
WIFI	802.11 a/b/g/n /AC WIFI+BT
Built-in Camera	0.3M/2.0M pixel
Stereo Speakers	3W + 3W
Power Supply	Power Adaptor 36W/48W/60W/90W/120W
GPU	Integrated Intel® HD Graphics
Motherboard	17*17cm Thin Mini ITX (support J3160/J1900/Apollo link/ Gemini Lake/H81/B85/H110/H310C/B360/H410/......)

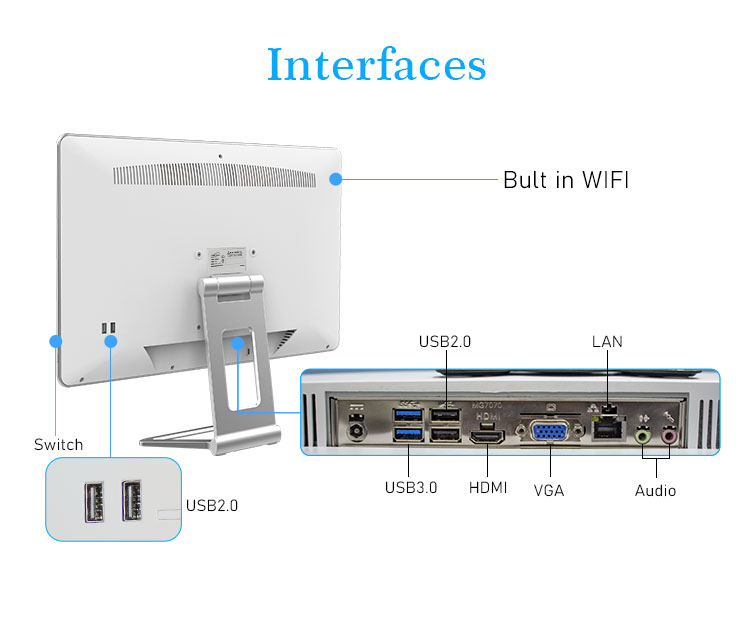

I/O ports	USB2.02/USB3.02/RJ451/Mic1/HDMI1/Earphone1/VGA*1 (depend on the motherboard)
Side I/O ports	USB2.0*2 (default)
CPU	Intel® Atom™/Celeron®/Pentium®/Core™/Skylake/Kabylake/Coffeelake i3 i5 i7 (optional)
Ram	DDR3/DDR4 SO-DIMM 2GB-16GB (optional)
Storage	2.5'' 500GB-1TB HDD / 16GB-256GB SSD (optional)
Touch	10 point CapacitiveTouch (optional)
VESA WALL MOUNT	100*100mm
Mouse&Keyboard	Wired/Wireless keyboard﹠mouse (optional)
Win 7/WIN8/WIN10/Linux	Compatible
Tilt Angle	－5°- 50°
Net weight	5.2kg
Gross weight	6.5kg
Storage temperature	-10℃- 60℃

3. Product Feature And Application of 23.8'' Windows All in one PC

This 23.8'' Windows All in one PC, windows PC, Windows all in one, 23.8'' Windows, Product Features:

1. Integrated structure design of Intel standard pc

2. ultrathin and ordinary aluminium alloy ladder bracket

3. Single rotating shaft aluminum alloy support

4. 10 point capacitive touch screen( Optional)

5. standard VESA wall mount 100*100mm

6. Rotation angel from -5° to 50° , comfortable use

This 23.8'' Windows All in one PC, 23.8'' Windows,all in one windows PC, Product applicable for:

Business, smart office, smart education, smart factory, smart medical, smart monitoring system, smart auction system, customized industries, etc.

4. Production Details of 23.8'' Windows All in one PC

5. Product Qualification of 23.8'' Windows All in one PC

This 23.8'' Windows All in one PC, windows PC, Windows all in one, 23.8'' Windows,all in one windows PC qualify to CE, FCC and ROHS , certified to ensure qualification for most markets all around the world.

6. Deliver,Shipping And Serving of 23.8'' Windows All in one PC

QTY. (pcs)	Sample	20-50pcs	50-200	200-500	500-1K	Above 1K
Delivery (day)	7days	10-12days	12-15days	15-20days	20-30days	30-35days

	20ft		40GB		40HQ
	with pallet	w/o pallet	with pallet	w/o pallet	with pallet	w/o pallet
Loading Qty.

7. FAQ

No power	Check that the power adaptor and power cord are connected well.
No power	Insure the power button works normally.
No display	Check the All one pc is not under “sleep” or “standby” mode.
No Network	Check the network cable is connected successfully if you use wired network.
No Network	Check the the wifi function is opened if you use wireless network.
